مشخصات محافظ شارژ 1 سل 5 آمپر
معرفی محافظ شارژ تک سل 5 آمپر
مدار محافظ شارژ تک سل 5 آمپر یکی از اجزای ضروری در سیستمهای تغذیه قابل شارژ با باتری لیتیوم یون است. این مدار که با نام BMS 1S 5A شناخته میشود، وظیفهی کنترل و حفاظت از باتری را در برابر خطراتی چون شارژ بیشازحد، تخلیهی بیشازحد، و جریانهای ناخواسته بر عهده دارد. در واقع استفاده از این ماژول باعث افزایش عمر باتری و ایمنی در دستگاههای الکترونیکی قابل حمل میشود.
محصول حاضر برای سلهای 18650، باتریهای لیتیوم پلیمر و هر باتری تکسل 3.7 ولت طراحی شده است. مدار شامل تراشهی DW01 به عنوان کنترلر مرکزی و دو عدد MOSFET 8205A جهت سوئیچ جریانهای بالا است. این ترکیب باعث میشود مدار توانایی تحمل جریان تا 5A را داشته باشد و به راحتی در پروژههایی مانند اسپیکر قابلحمل، پاوربانک، نورهای LED پرقدرت، باتری رباتها، ماژولهای GSM و GPS و سایر مدارات تغذیه کاربردی قابل استفاده باشد.
ویژگیها محافظ شارژ تک سل 5 آمپر
مناسب برای باتریهای 3.7 ولتی لیتیوم یون/لیتیوم پلیمر
تحمل جریان تا 5 آمپر
محافظت در برابر Over Charge / Over Discharge / Short Circuit
طراحی کوچک و سبک با قطر حدود ۲ سانتیمتر
مصرف خودی بسیار پایین (کمتر از 50 μA)
مناسب برای پروژههای DIY، رباتیک، و دستگاههای قابل شارژ
نحوه عملکرد:
زمانی که ولتاژ باتری از مقدار مجاز (حدود 4.25V) بالاتر رود، مدار از شارژ دهی به باتری جلوگیری میکند تا از آسیب احتمالی جلوگیری شود. همچنین اگر ولتاژ باتری از حد پایین (حدود 2.5V) کمتر شود، مدار خروجی را قطع کرده تا از دشارژ بیشازحد جلوگیری کند. به همین ترتیب در صورت بروز اتصال کوتاه یا جریان بالاتر از حد مجاز، MOSFETها مسیر جریان را قطع کرده و مدار را ایمن میسازند.
کاربردها محافظ شارژ تک سل 5 آمپر
پاوربانک و شارژرهای قابل حمل
اسپیکرهای بلوتوث
مدارات تغذیه پروژههای آردوینو و ESP
نورهای LED قابل شارژ
پروژههای الکترونیکی خانگی و صنعتی
مزایا:
ایمنی بالا برای باتری و کاربر
طراحی فشرده و نصب آسان
سازگار با انواع سلهای 18650
کیفیت ساخت مناسب و طول عمر بالا
قیمت اقتصادی نسبت به BMS چندسل
نکات هنگام استفاده:
هنگام لحیمکاری، دمای نوک هویه نباید بیش از حد بالا باشد تا به اجزای SMD آسیب نرسد.
مسیرهای B+، B− و P+، P− را طبق نقشه دقیق متصل کنید تا جریان اشتباه وارد مدار نشود.
در صورت استفاده برای باتریهای با ظرفیت بسیار بالا، میتوانید از نسخههای 10A یا 15A استفاده کنید.
5A Lithium Battery Protection Board – BMS for 3.7V Cells
The 1S 5A Protection Board is a compact and efficient module designed to protect single-cell lithium-ion or lithium-polymer batteries (such as 18650 cells) from overcharge, over-discharge, and short circuits. Commonly known as BMS 1S 5A, this circuit ensures the safety and longevity of rechargeable battery systems used in portable electronics.
Built with the reliable DW01 protection IC and 8205A dual MOSFET, the board can handle current up to 5A, making it suitable for various applications such as Bluetooth speakers, LED lights, DIY battery packs, and robotics projects.
Main Features:
Supports single lithium-ion or Li-Po cell (3.7V nominal)
Maximum discharge current: 5A
Over-charge protection at approx. 4.25V
Over-discharge protection at approx. 2.5V
Compact circular PCB (around 20mm diameter)
Low quiescent current consumption
Lightweight and easy to integrate
How It Works:
When the battery voltage exceeds the overcharge threshold, the DW01 IC disables charging to prevent excessive voltage. Similarly, when the cell voltage drops too low, the circuit disconnects the load to avoid harmful deep discharge. The 8205A MOSFETs act as electronic switches that instantly react to overcurrent or short circuit conditions, making the board a reliable safety component.
Applications:
Power banks
Bluetooth speakers
Portable rechargeable LED lights
Arduino and ESP32 battery-powered projects
RC and robotics power systems
Advantages:
High safety and battery protection
Compact design with low power loss
Affordable and lightweight module
Easy to solder and connect
Enhances battery lifespan and prevents damage

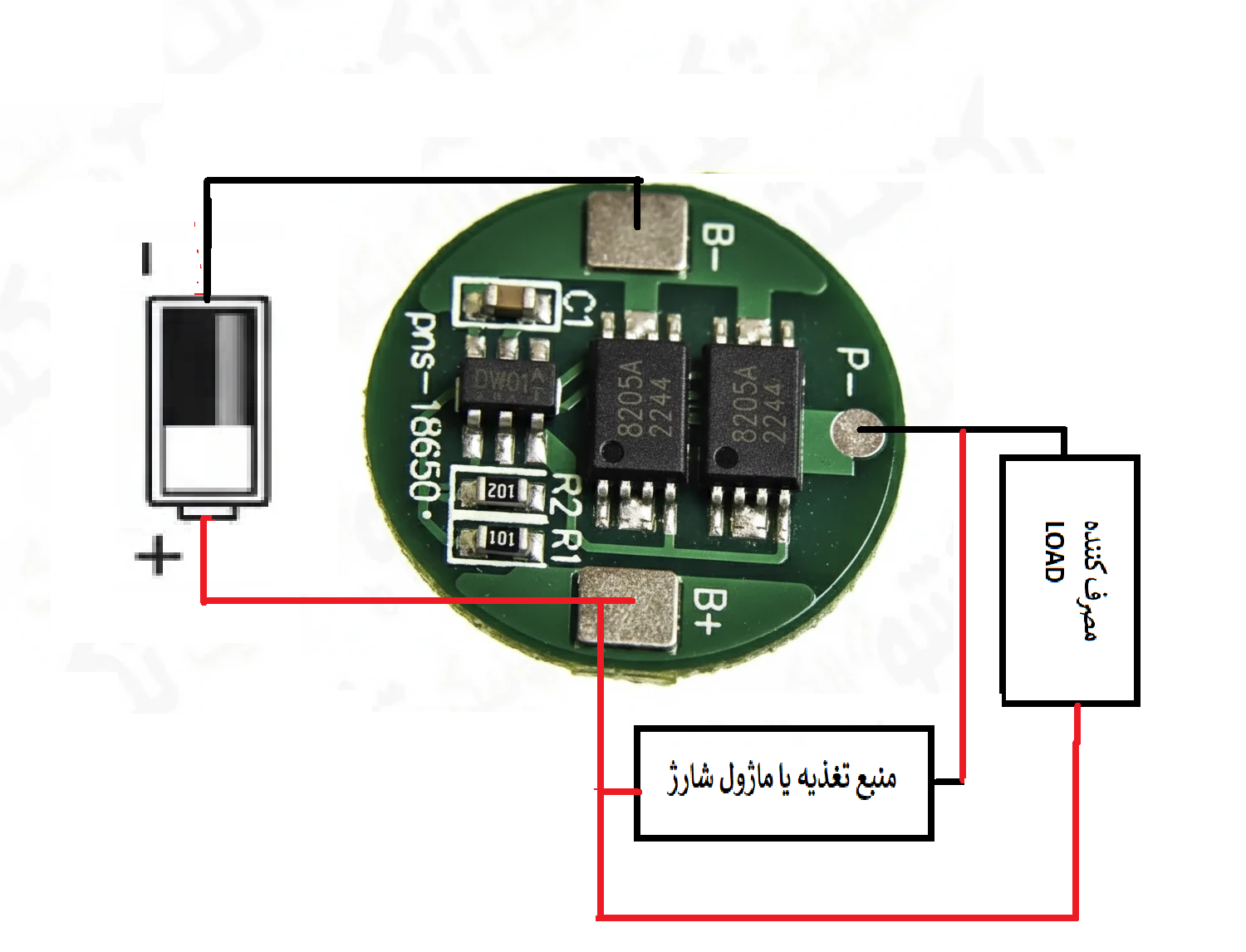

Connection Guide:
B+ / B− → Connect directly to battery terminals
P+ / P− → Connect to the load or external charging module
Ensure proper polarity and clean soldering during installation to avoid malfunction.
This BMS 1S 5A board is an essential component for any project involving single-cell lithium batteries, providing peace of mind and stable performance.
