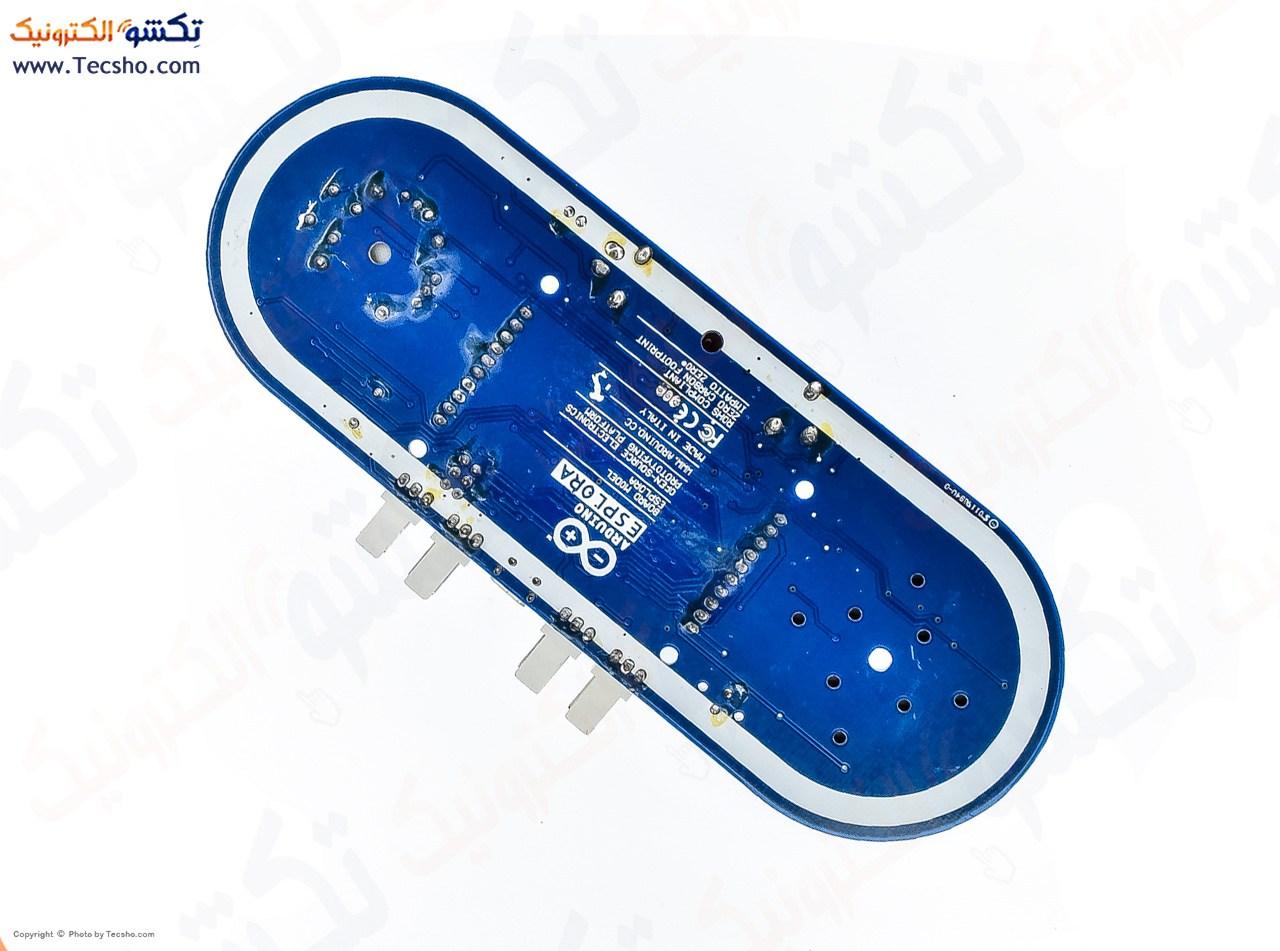

برد آردوینو مدل Esplora | BORD ARDUINO ESPLORA

ON LED: به رنگ سبز، نشان دهنده این است که آیا برد منبع تغذیه را دریافت میکند یا خیر

L LED: به رنگ زرد، مستقیما به پین 13 برد وصل شده است.

RX & TX LED: به رنگ زرد، نشان دهنده ارسال و دریافت داده

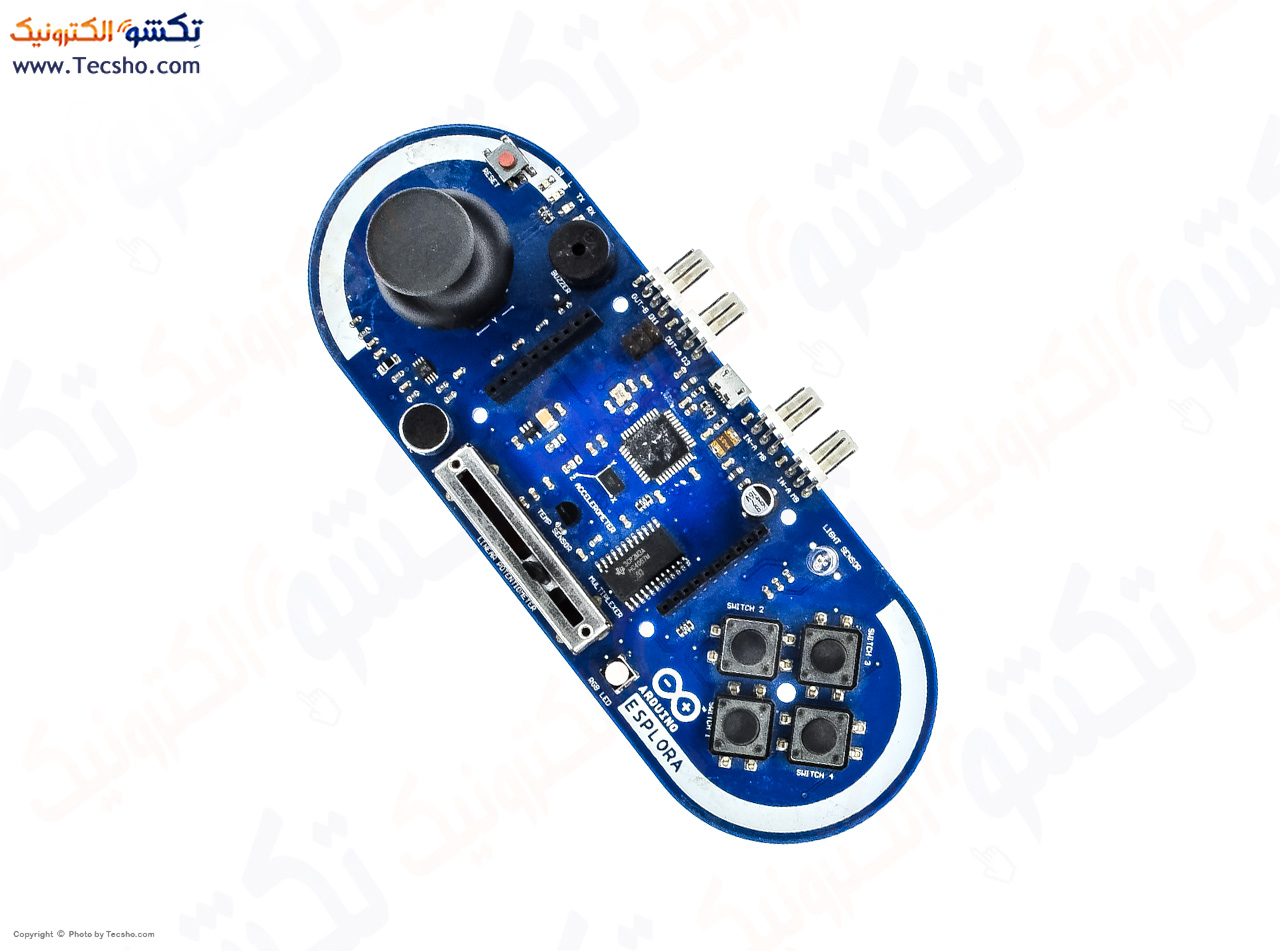

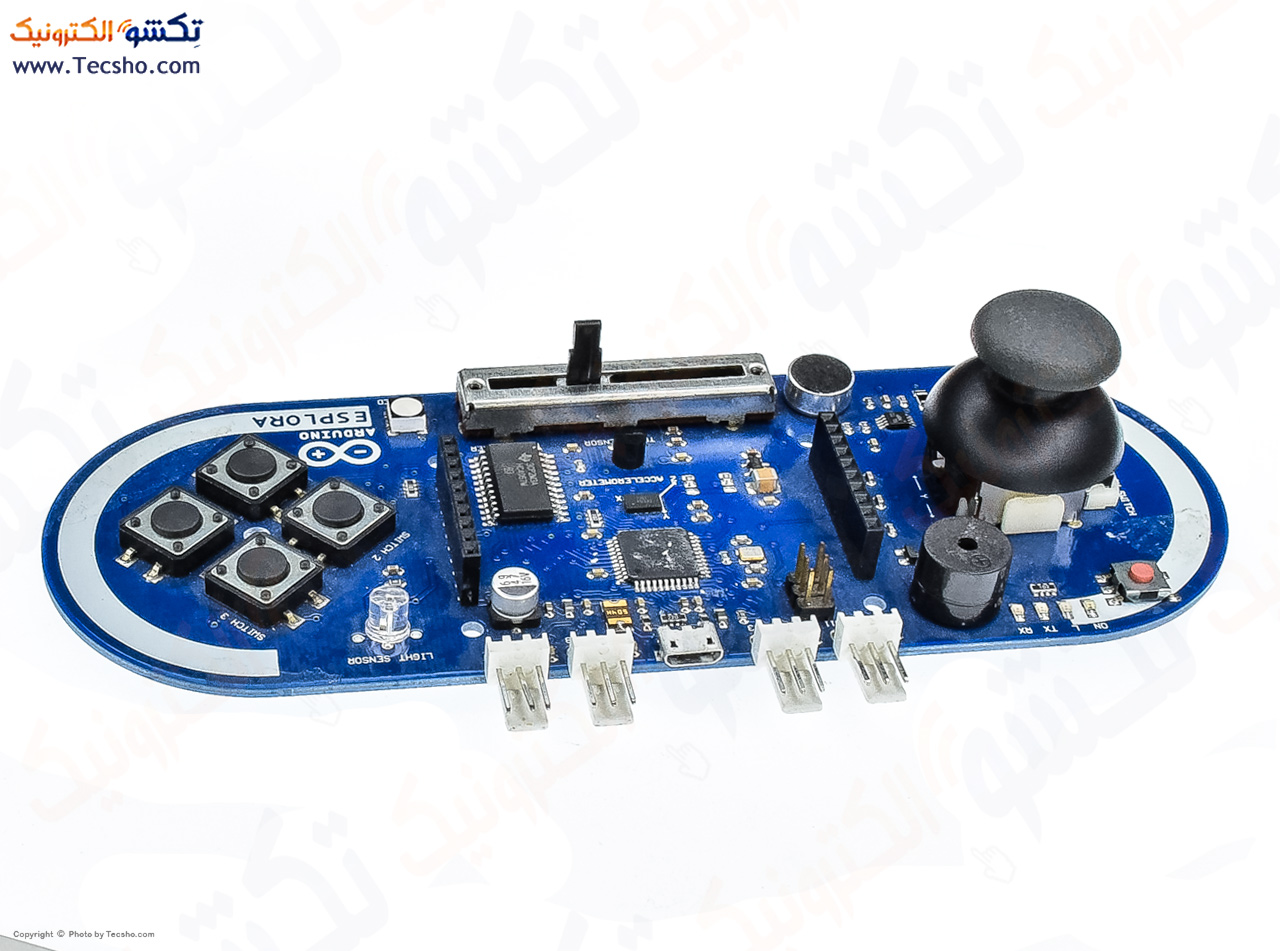

The Arduino Esplora is a microcontroller board derived from the Arduino Leonardo. The Esplora differs from all preceding Arduino boards in that it provides a number of built-in, ready-to-use setof onboard sensors for interaction.The Esplora has onboard sound and light outputs, and several input sensors, including a joystick, a slider, a temperature sensor, an accelerometer, a microphone, and a light sensor. It also has the potential to expand its capabilities with two Tinkerkit input and output connectors, and a socket for a color TFT LCD screen. Like the Leonardo board, the Esplora uses an Atmega32U4 AVR microcontroller with 16 MHz crystal oscillator and a micro USB connection capable of acting as a USB client device, like a mouse or a keyboard. In the upper left corner of the board there is a reset pushbutton, that you can use to restart the board. There are four status LEDS

 ON [green] indicates whether the board is receiving power supply

L [yellow] connected directly to the microcontroller, accessible through pin 13

RX and TX [yellow] indicates the data being transmitted or received over the USB communication

Microcontroller: ATmega32u4

Operating Voltage: 5V

Flash Memory: 32 KB of which 4 KB used by bootloader

SRAM: 2.5 KB

EEPROM: 1 KB

Clock Speed: 16 MHz
