شیلد آردوینو مدل YUN | BORD SHIELD ARDUINO YUN

برد شیلد آردوینو برای شبکه و USB


قیمت : 3/242/322 ریال

تعداد :
شناسه محصول: 135634
موجودی انبار: موجودی این کالا به طور موقت به اتمام رسیده و تامین موجودی در حال انجام است. در صورت تمایل به خرید جزئی و یا حتی عمده این کالا، با شماره تلفن واحد بازرگانی فروشگاه 01133302323 داخلی 2 تماس یا از طریق برنامه پیام رسان "بله" اعلام نمایید
علاوه بر تماس تلفنی، امکان ثبت درخواست تامین موجودی و استعلام قیمت با زدن دکمه استعلام بالا، یا از بخش سبد سفارش داخل نیز میسر می باشد.

دسته:
مشخصات فنی و کاربرد

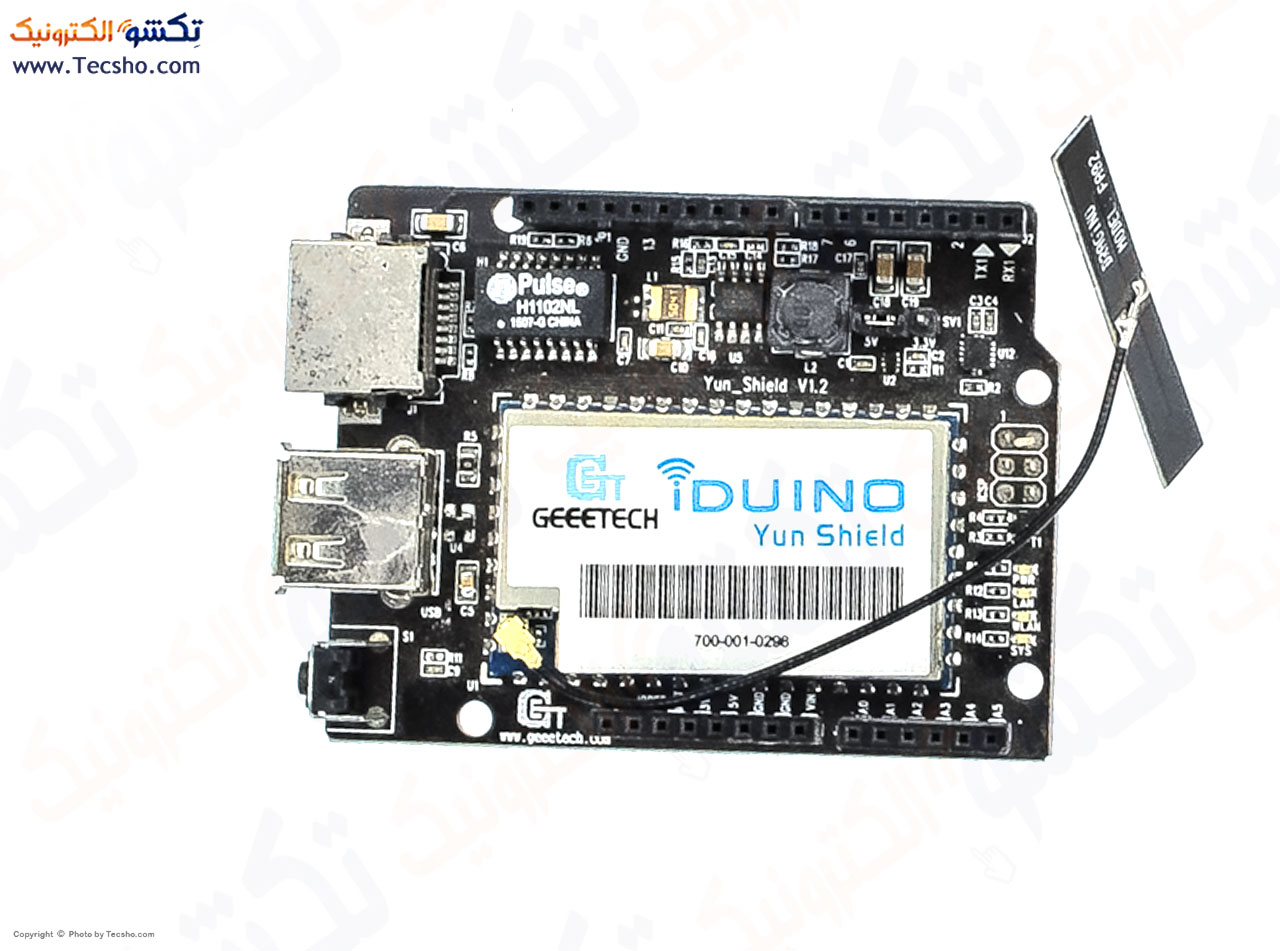

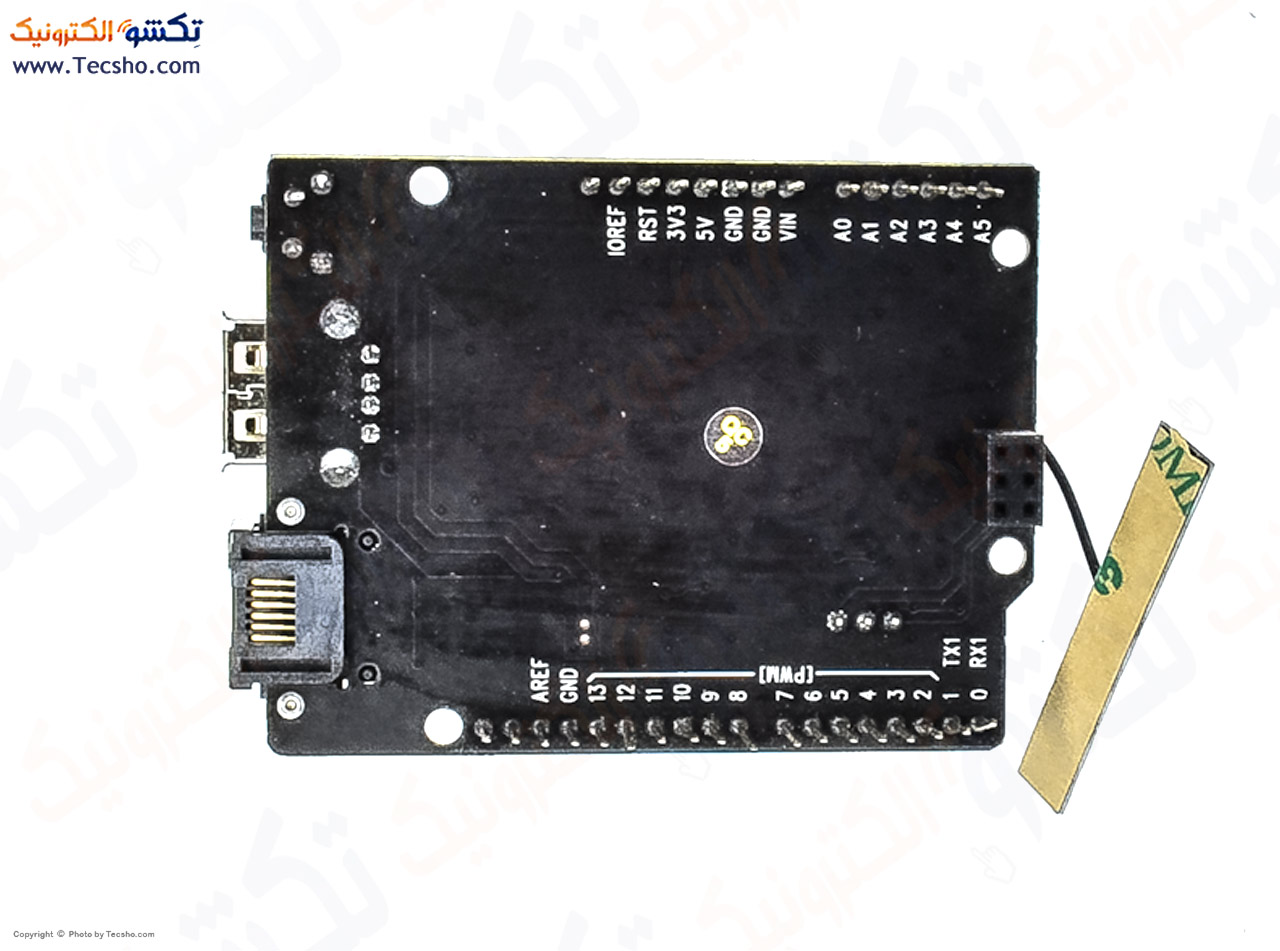

مشخصات شیلد آردوینو مدل YUN

شیلد YUN یکی از قوی ترین شیلد ها برای آردوینو است. این شیلد برای حل مشکل اینترنت و ذخیره سازی برای برد آردوینو طراحی شده است. این شیلد با انواع برد های آردوینو سازگار است. دارای یک آنتن خارجی است که ثبات و امکان را برای محیط های دیگر فراهم می کند.

 https://tecsho.com/upload/imgs/1400/6/429960.PNG

Yun Shield is one of the most powerful shieldsfor Arduino Board. Yun Shield is designed to solve the Internet connectivityand storage issue for Arduino Board. Yun Shield runs Open Source OpenWrt system(Same system as runs in Arduino Yun)and it is fully compatible withArduino IDE v1.5.4 or later. Yun Shieldis the ideally choice for Arduino Projects which require various internet connections and more storage. Basically, Yun Shield + Leonardo equally to the officialArduino Yun, but Yun Shield is more flexible because it can workwith other Arduino board such as Uno, Duemilanove, Megaetc. And Yun Shield usesexternal wifi antenna which provides stability and possibilityfor various environments

Features

Open source Linux (OpenWrt) inside

Low power consumption

Compatible with Arduino IDE 1.5.4 or later, user can program, debug or upload sketch to Arduino board via Arduino IDE

Managed by Web GUI, SSH via LAN or WiFi

Software upgradable via network

Built-in web server

Support internet connection via LAN port, WiFi or 3G dongle

Support USB flash to provide storage for Arduino projects

Failsafe design provides robustly system

Compatible with Arduino Leonardo, Uno , Duemilanove, Diecimila, Mega

Specifications

Processor: 400MHz, 24K MIPS

Flash: 16MBytes

RAM: 64MBytes

Power Input: 4.75v ~ 23v via Arduino VIN pin

1 x 10M/100M RJ45 connector

150M WiFi 802.11 b/g/n

External Antenna via I-Pex connector

1 x USB 2.0 host connector, used for USB storage or 3G connection

1 x Reset button

Compatible with 3.3v or 5v I/O Arduino
